Threaded Mount

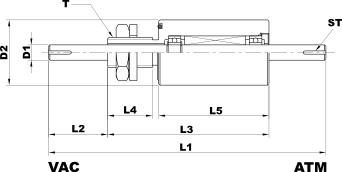

Threaded Mount Feedthrough Drawing Threaded Mount Feedthrough Image

Metric sizes

M P D1 D2 L1 L2 L3 L5 T ST TC BT FS
4 11040
∅4
+0
-0.018
 ∅21 76.5 15 46.5 36.5 M12x1.5 0.5x10 (flat) 1 686 S14
5 11050
∅5
+0
-0.018
 ∅21 76.5 15 46.5 36.5 M12x1.5 0.5x10 (flat) 1.6 686 S14
6 11060
∅6
+0
-0.018
 ∅21 76.5 15 46.5 36.5 M12x1.5 0.5x10 (flat) 1.6 686 S14
12 11120
∅12
+0
-0.027
 ∅48 179 40 109 74 M25x1.5 4x2.5x20 (keyway) 23.4 6002 G35
121 11121
∅12
+0
-0.027
 ∅48 179 40 109 74 M25x1.5 5x2.5x20 (keyway) 23.4 6002 G35
20 11200
∅20
+0
-0.033
 ∅63 211 55 121 82 M30x1.5 6x3.5x25 (keyway) 108.6 6005 G50
201 11201
∅20
+0
-0.033
 ∅63 211 55 121 82 M30x1.5 6x3.5x25 (keyway) 108.6 6005 G50

1water cooled version, water ports radially on feedthrough body

download 3d model as step file

Inch sizes

M P D1 D2 L1 L2 L3 L4 L5 T ST TC BT FS
3/16 61010 ∅3/16" ∅16 65.08 12.7 40.13 7.1 33.02 5/16-24 UNF-2A 0.030dx0.37L (flat) 1.2 R166/SS 2-012
1/4 61020 ∅1/4" ∅19.05 87.3 19.05 49.2 9.5 39.68 7/16-20 UNF-2A 0.030dx0.40D (flat) 1.9 R4/SS 2-015
1/2 61030 ∅1/2" ∅72.9 223.83 63.25 128.83 33.7 90.48 1"-14 UNS-2A 0.126wx0.77dx1.0L (keyway) 20 R8/SS 2-128
1/21 61031 ∅1/2" ∅72.9 223.83 63.25 128.83 33.7 90.48 1"-14 UNS-2A 0.126wx0.77dx1.0L (keyway) 20 R8/SS 2-128
3/4 61040 ∅3/4" ∅72.9 223.83 63.25 128.83 33.7 90.48 1"-14 UNS-2A 0.188wx0.114dx1.0L (keyway) 76 R12/SS 2-128
3/41 61041 ∅3/4" ∅72.9 223.83 63.25 128.83 33.7 90.48 1"-14 UNS-2A 0.188wx0.114dx1.0L (keyway) 76 R12/SS 2-128

1water cooled version, water ports radially on feedthrough body

download 3d model as step file
