Hollow Shaft Flange Mount

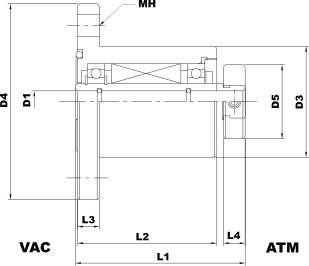

Hollow Shaft Flange Mount Feedthrough Image Hollow Shaft Flange Mount Feedthrough Drawing

Metric sizes

M P D1 D3 D4 D5 L4 L1 MH L2 L3 R SE BT FS
10 14100
∅10
+0.03
+0.01
 ∅51 ∅90 ∅34 10 78 ∅10 (4x on ∅70 bc) 64 10
∅10
-0.01
-0.03
 1 16033 G40
101 14101
∅10
+0.03
+0.01
 ∅51 ∅90 ∅34 10 78 ∅10 (4x on ∅70 bc) 64 10
∅10
-0.01
-0.03
 1 16033 G40
20 14200
∅20
+0.04
+0.02
 ∅63 ∅105 ∅44 10 82.5 ∅10 (4x on ∅85 bc) 68.5 10
∅20
-0.01
-0.03
 1 6906 G50
201 14201
∅20
+0.04
+0.02
 ∅63 ∅105 ∅44 10 82,5 ∅10 (4x on ∅85 bc) 68.5 10
∅20
-0.01
-0.03
 1 6906 G50
25 14250
∅25
+0.04
+0.02
 ∅71 ∅120 ∅49 10 88 ∅10 (4x on ∅100 bc) 74 10
∅25
-0.01
-0.03
 1 6907 G60
251 14251
∅25
+0.04
+0.02
 ∅71 ∅120 ∅49 10 88 ∅10 (4x on ∅100 bc) 74 10
∅25
-0.01
-0.03
 1 6907 G60
30 14300
∅30
+0.04
+0.02
 ∅78 ∅120 ∅54 10 93 ∅10 (4x on ∅100 bc) 79 10
∅30
-0.01
-0.03
 1 6908 G70
301 14301
∅30
+0.04
+0.02
 ∅78 ∅120 ∅54 10 93 ∅10 (4x on ∅100 bc) 79 10
∅30
-0.01
-0.03
 1 6908 G70
40 14400
∅40
+0.05
+0.02
 ∅90 ∅145 ∅69 12 96 ∅12 (4x on ∅120 bc) 80 10
∅40
-0.01
-0.03
 1 6910 G80
401 14401
∅40
+0.05
+0.02
 ∅90 ∅145 ∅69 12 96 ∅12 (4x on ∅120 bc) 80 10
∅40
-0.01
-0.03
 1 6910 G80
50 14500
∅50
+0.05
+0.02
 ∅103 ∅160 ∅79 12 98 ∅12 (4x on ∅135 bc) 82 12
∅50
-0.01
-0.03
 1 6912 G90
501 14501
∅50
+0.05
+0.02
 ∅103 ∅160 ∅79 12 98 ∅12 (4x on ∅135 bc) 82 12
∅50
-0.01
-0.03
 1 6912 G90
75 14750
∅75
+0.06
+0.03
 ∅143 ∅210 ∅109 15 115 ∅12 (8x on ∅185 bc) 96 12
∅75
-0.01
-0.04
 1 6918 G130
751 14751
∅75
+0.06
+0.03
 ∅143 ∅210 ∅109 15 115 ∅12 (8x on ∅185 bc) 96 12
∅75
-0.01
-0.04
 1 6918 G130

1water cooled version, water ports radially on feedthrough body

download 3d model as step file

Inch sizes

M P D1 D3 D4 D5 L4 L1 MH L2 L3 R SE BT FF
1/2 64010 ∅12.75 ∅69.85 ∅152.4 ∅31.75 9.652 81.66 ∅19(4x on ∅120.65 bc) 69.85 9.65
∅12.7
+0
-0.002
 0.762 6903 2-238
1/21 64011 ∅12.75 ∅69.85 ∅152.4 ∅31.75 9.652 81.66 ∅19(4x on ∅120.65 bc) 69.85 9.65
∅12.7
+0
-0.002
 0.762 6903 2-238
1 64020 ∅25.45 ∅76.2 ∅177.8 ∅50.8 12.70 84.84 ∅19(4x on ∅139.7 bc) 69.85 9.65
∅25.4
+0
-0.002
 0.762 6906 2-244
11 64021 ∅25.45 ∅76.2 ∅177.8 ∅50.8 12.70 84.84 ∅19(4x on ∅139.7 bc) 69.85 9.65
∅25.4
+0
-0.002
 0.762 6906 2-244
1 1/21 64031 ∅38.15 ∅95.25 ∅177.8 ∅76.2 15.75 94.34 ∅19(4x on ∅139.7 bc) 76.2 9.65
∅38.1
+0
-0.002
 0.762 6909 2-244
1 1/212 6404126 ∅38.125 ∅123.95 ∅203.2 n/a n/a 175.26 ∅19(4x on ∅177.8 bc) 127 12.70
∅38.1
+0
-0.002
 0.762 7012 2-256
2 64050 ∅50.85 ∅106.17 ∅177.8 ∅88.9 15.75 100.74 ∅19(4x on ∅139.7 bc) 82.55 9.65
∅50.8
+0
-0.002
 0.762 6911 2-244
21 64051 ∅50.85 ∅106.17 ∅177.8 ∅88.9 15.75 100.74 ∅19(4x on ∅139.7 bc) 82.55 9.65
∅50.8
+0
-0.002
 0.762 6911 2-244

1water cooled version, water ports radially on feedthrough body
2cantilevered design (no bearing at process side)

download 3d model as step file
