Directional Crystal Growers

Directional Crystal Growers

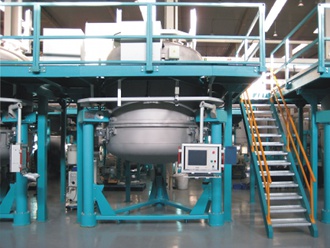

The multi crystallizers are designed for directional solidification of multi-crystal solar silicon ingots for photovoltaic wafer production.

The directional solidification systems of JYT Corporation include 4 models. They have capacities of 270kg, 450kg, 550kg as well as 800kg. The furnaces JZ-270 and JZ-450 have the same chamber size as well as JZ-520 and JZ-800. They only differ in the hot zone size.

JZ-270 JZ-450 JZ-520 JZ-800
Maximum charge 270kg 450kg 520kg 800kg
Typical ingot size (LxWxH) 690x690x245mm 840x840x270mm 840x840x330mm 990x990x340mm
Cycle time 48h 60h 65h 70h
Data sheet Document icondownload Document icondownload Document icondownload Document icondownload

Features and Benefits of JYT's Directional Crystal Growers

  • Charge capacity up to 550kg with process guaranty
  • Expanding capacity up to 800kg
  • With the world's largest current ingot loading capacity of 800kg these furnaces reduce electricity consumption and capital expenditures, while increasing production efficiency
  • Large average crystal grain size (15-30mm)
  • Very reasonable prices and best overall value
  • Advanced yet proven equipment technology with user-optimized design
  • High quality products with reliable performance
  • Renowned companies such as the largest wafer manufacturer LDK Solar already take the advantage in operating these systems in serial production. More than 1000 units have been sold so far
